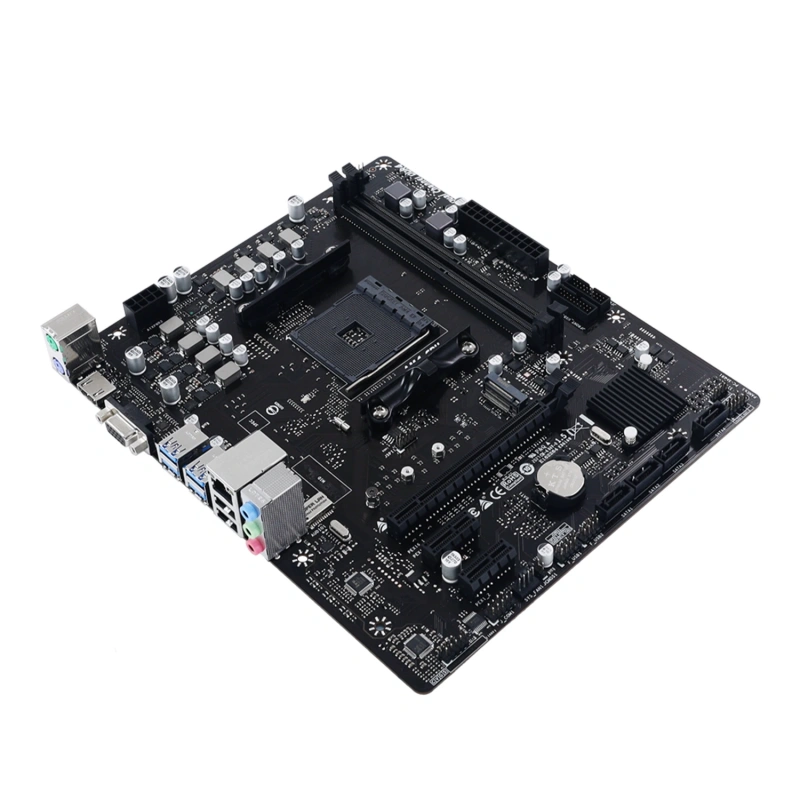

Socket AM4 support AMD 3rd Gen Ryzen™ (Matisse/ Renoir) processors and Ryzen™ 4th Gen (Vermeer) processors
Support for future AMD Ryzen processors with BIOS update
* Please refer to www.biostar.com.tw for CPU support list.
MEMORY
4th Gen AMD Ryzen Processors (Vermeer CPUs/ Future APUs):
Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
3rd Gen AMD Ryzen Processors (Matisse CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC and ECC Un-buffered 8/ 16/ 32 GB DDR4 module
* Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO
By CPU model
Supports DX12
Supports HDCP
STORAGE
Total supports 1x M.2 socket and 4 x SATA III (6Gb/s) ports
1 x M.2 (M Key) Socket (M2_PCIE_SATA1):
Supports M.2 Type 2242/ 2260/ 2280 SSD module
AMD Ryzen 5000/3000 Series Processors
Supports PCIe 4.0 x 4 (64Gb/s) & SATA III (6.0Gb/s) SSD
AMD Ryzen 5000 G/4000 G Series Processors
Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6.0Gb/s) SSD
AMD B550 Chipset
4 x SATA III Connectors (6Gb/s) : Supports AHCI & RAID 0, 1, 10
* M.2 (M2_PCIE_SATA1) Socket: The bandwidth is depended on CPU. Supports PCIe 4.0 x 4 (64Gb/s) speed, which depends only on Ryzen 3rd Gen Matisse & 4th Gen Vermeer.
* Specifications vary by CPU types
LAN
Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Supports Super LAN Surge Protection
AUDIO CODEC
ALC887
7.1 Channels, High Definition Audio, Hi-Fi (Front)
USB
8 x USB 3.2 (Gen1) ports (4 on rear I/Os and 4 via internal headers)
6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)
EXPANSION SLOT
AMD Ryzen 5000/3000 Series Processors
1 x PCIe 4.0 x16 Slot (x16 or x4/x4/x4/x4 mode)
or
AMD Ryzen 5000 G/4000 G Series Processors
1 x PCIe 3.0 x16 Slot (x16 or x8/x4/x4 mode)
AMD B550 Chipset
2 x PCIe 3.0 x 1 Slot
* According to different CPUs will have different speeds.
* Specifications vary by CPU types
REAR I/O
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x HDMI Port
1 x VGA Port
1 x LAN port
4 x USB 3.2 (Gen1) Ports
2 x USB 2.0 Ports
3 x Audio Jack
INTERNAL I/O
4 x SATA III (6.0Gb/s) Connectors
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
2 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Clear CMOS Header
1 x Internal Stereo Speaker Header
1 x COM Port Header
H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION
Micro ATX Form Factor Dimension: 24.4cm x 20.8cm ( W x L )
OS SUPPORT
Supports Windows 10(64bit) / 11(64bit)
?Biostar reserves the right to add or remove support for any OS with or without notice
BUNDLE SOFTWARE
BullGuard
ACCESSORIES
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
FEATURES
Supports 100% Solid capacitor
A.I FAN
PCIe M.2 4.0
